HALDRUP DC-20

Our HALDRUP DC-20 densiometric cleaning and sorting column is the ideal machine for cleaning and sorting all types of grain. Cleaning by means of adjustable air jet allows absolute freedom from mixing between two plots.

Play Video

haldrup_dc-20_overviewDUST & CHAFF BAG BLOWER      SEED BOX 2 AIR COLUMN       SEED BOX 3 VIBRATION FEEDER HEIGHT ADJUSTMENT ELECTRIC BOX FILLING FUNNEL      SEED BOX 1

DC-20

DC-20 Specifications

Current supply 230 V – 10 A – 50/60 Hz
Grain feed Electronic adjustable shake out
Cleaning Ventilator with air-flow adjustment, 0.75 HP, from 0 to 3000 r/min
electronic speed regulation from 0 to 100%
Level 1
Level 2
Level 3
Level 4		 Big grains
Medium grains
Small grains
Dust
Displacement Arrangeable on the ground
Dimensions: Length x Width x Height 100 cm x 120 cm x 230 cm
Weight 150 kg

You can find all other details in the brochure. Do you have any further questions? Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can also reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0

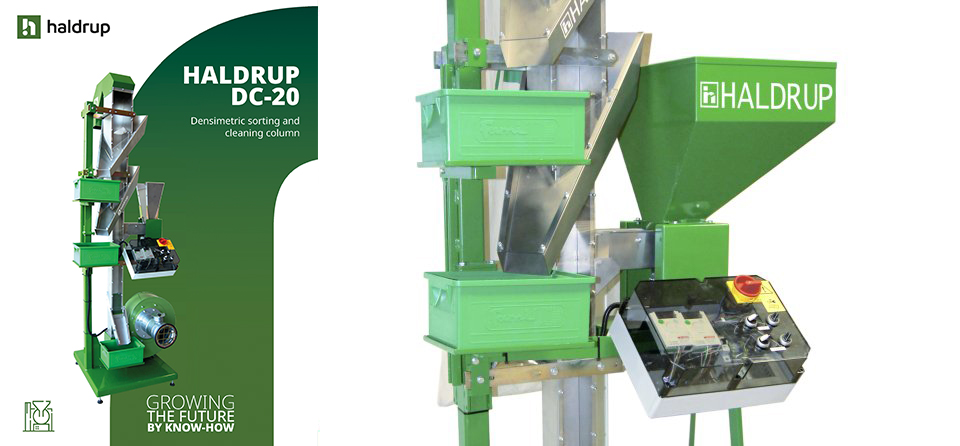

brochure haldrup_dc-20
DC-20 Brochure
haldrup_dc-20_08
haldrup_dc-20_07
haldrup_dc-20_06
haldrup_dc-20_05
haldrup_dc-20_04
haldrup_dc-20_03
haldrup_dc-20_02
haldrup_dc-20_01

Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0

    • the air column allows the user to see the process easily thanks to the transparent front design
    • the speed of the blower can be continuosly adjusted from 1 to 10 by the user
    • a special cotton bag that collects dust and chaff during the threshing and cleaning process
    • the electric box is the heart of the machine since it is where all the electrical part is controlled
    • made of antistatic material, the funnel allows all material to flow properly into the vibrator feeder
    • easily adjustable in 5 minutes we will have the machine ready to start
    • here the heaviest seeds are collected
    • here the average seed fractions are collected
    • here the smallest fractions are collected
    • the vibrator feeder controls the flow of seeds that passes between the funnel and the seed sensor
