HALDRUP GC-30W-200 – Seed counter with integrated scales for determining the thousand-grain weight
The HALDRUP GC-30W-200 is a compact seed counter that combines precise grain counting and weight recording in a single system.
GC-30W-200 Benefits
- Precise seed counting device for determining the thousand-grain weight (TGW)
- Combination of grain counting and integrated scales in one system
- Automatic calculation of the TGW from the number of grains and sample weight
- Two counting channels with vibration feed for even grain separation
- Counting speed of up to 20 grains per second
- Suitable for all common types of fruit
- Freely definable grain count for flexible laboratory applications
- Integrated code scanner (QR, data matrix, barcode) for sample identification
- RS-232 interface for connection to laboratory and documentation systems
- Ideal for seed testing, plant breeding, field trials, and quality control
What is the GC-30W-200?
Seed counting device with integrated scales for laboratory and field trials
The GC-30W-200 was developed for applications in which the number and weight of seed samples must be recorded accurately, reproducibly, and in a continuous process. Unlike traditional seed counting devices, the system integrates scales directly into the counting process.
Central application
Direct determination of the thousand-grain weight (TGW)
The thousand-grain weight is an established quality characteristic in seed testing and breeding. It describes the ratio between grain number and weight and provides important information about grain filling, homogeneity, and seed quality.
With the GC-30W-200, TGW determination is carried out directly from the counted number of seeds and the recorded sample weight. A freely definable number of seeds is counted and weighed immediately on the integrated scale. The thousand-seed weight is automatically calculated from these two measurements.
Since larger sample quantities can also be taken into account, the influence of segregation or grain size selection is reduced and the significance of the results is increased.
Functionality
Counting and weighing seeds in an integrated process

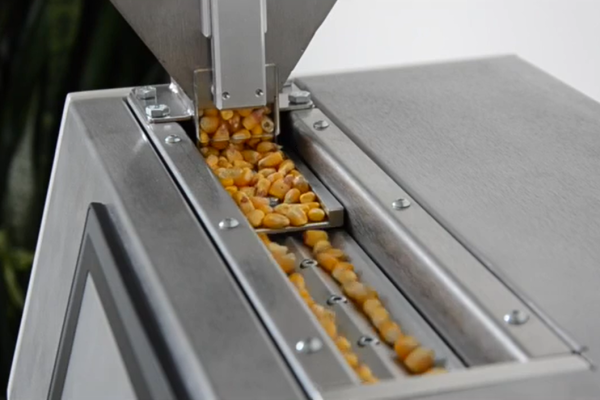

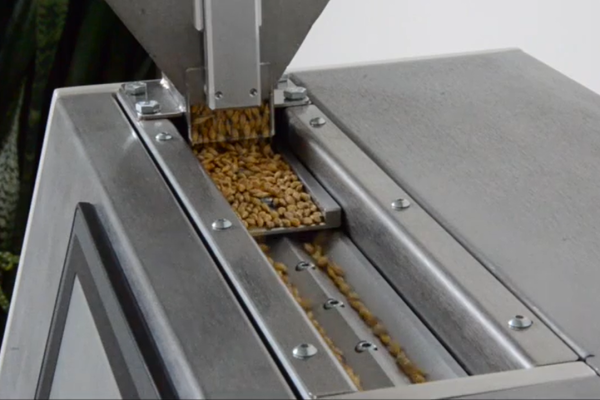

Two parallel counting channels with vibratory feed ensure uniform separation of the grains and stable counting results.
The counted sample is fed directly to the integrated scale, so that counting and weight data are recorded without manual transfer.
The close coupling of counting and weighing increases process reliability and improves the comparability of results across different samples, crops, and measurement series.
More than just TKG
Flexible counting and weight recording for seed samples
In addition to standard-compliant determination of the thousand-grain weight, the GC-30W-200 also supports precise counting and weight recording of freely definable seed samples.
This is particularly relevant for:
- Sample preparation in the laboratory
- Comparative studies between lines or years
- Weight checks of counted samples
- Documentation and research purposes
Counting and weighing data can be used and processed independently of each other.
Documentation and traceability
Unique sample allocation with integrated code scanner
An integrated code scanner for QR codes, data matrices, and barcodes enables unique identification of samples and batches.
Counting and weighing data are assigned directly to the respective sample and output via a serial interface.
Standardized data transfer facilitates connection to external laboratory, evaluation, or documentation systems and supports traceable archiving of measurement results.
Typical areas of application
Practical application of the GC-30W-200
- Seed testing and quality control
- Breeding and variety development
- Field trials
- Laboratory-based seed analysis
- Sample preparation and documentation
Technical specifications
Counting speed: up to 20 grains/s (2 channels at 10 grains/s)
Counting channels: 2, with vibration feed
Scale: integrated
Code types: QR code, data matrix, barcode
Interface: RS-232 (19200 N 1)
Power supply: 230 V AC, 6 A, 50 Hz
Dimensions (L × W × H): approx. 620 × 400 × 700 mm
Weight: approx. 33 kg
FAQ – Frequently asked questions about the GC-30W-200 seed counter
Is the GC-30W-200 always used with 1,000 grains?
No. Freely definable quantities can be counted and weighed. The thousand-grain weight is calculated from the quantity and weight.
For which crops is the device suitable?
The GC-30W-200 can be used for all common types of fruit.
What is the advantage of the integrated scale?
The direct coupling of counting and weighing reduces manual entries, minimizes sources of error, and ensures reproducible results.
