HALDRUP C-65

The HALDRUP C-65 plot combine has been specially developed for plots of 1.25 m or more. When harvesting grain, maize, rape and many other crops, the HALDRUP C-65 demonstrates maximum performance and impresses with its durability. The direct access to the inclined conveyor shaft, threshing drum and threshing concave enables quick cleaning.

GRAIN TANKCUTTING TABLE SAMPLING & BAGGING CABIN AIR INJECTION SYSTEM ENGINE TRANSPORT TRESHING & CLEANING TRACTION FEEDERHOUSE

C-65

C-65 Specifications

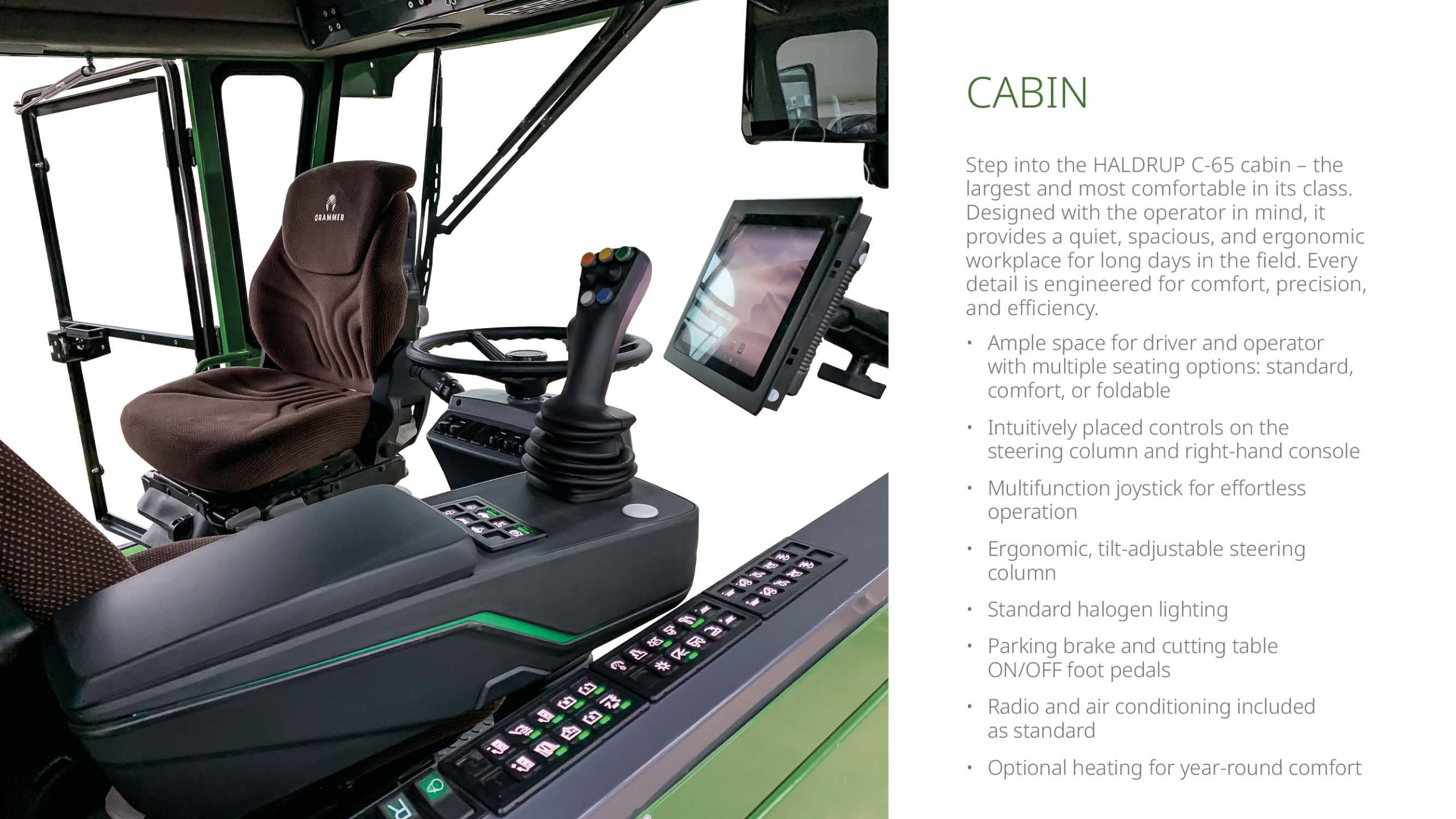

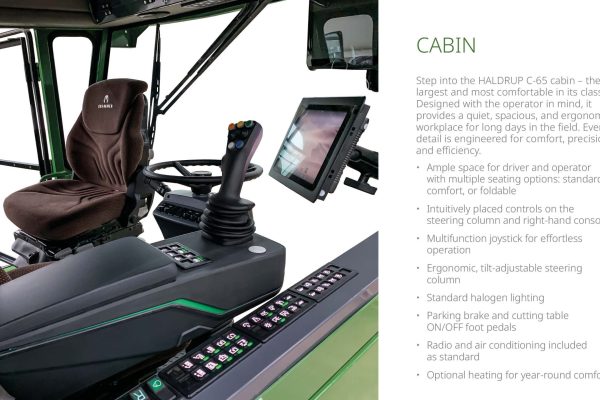

Cabin	for 2 persons with aircondition
Engine	Deutz diesel, water cooled, 55 kw/75 HP
Fuel tank	90 l
Drive	hydrostatic transmission 0-20 km/h
Steering	hydraulic; steering wheel adjustable in height and reclining
Tyres (front)	15.0/55-17
Tyres (rear)	23 x 8.50-12 or 11.0/65-12
Track width	from 1415 mm

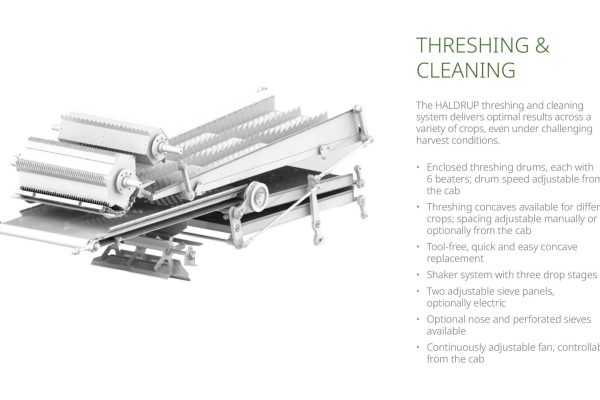

Threshing drum	speed: 350 – 1800 r/min; variable with variator, diameter: 350 mm, number of rasp bars: 6

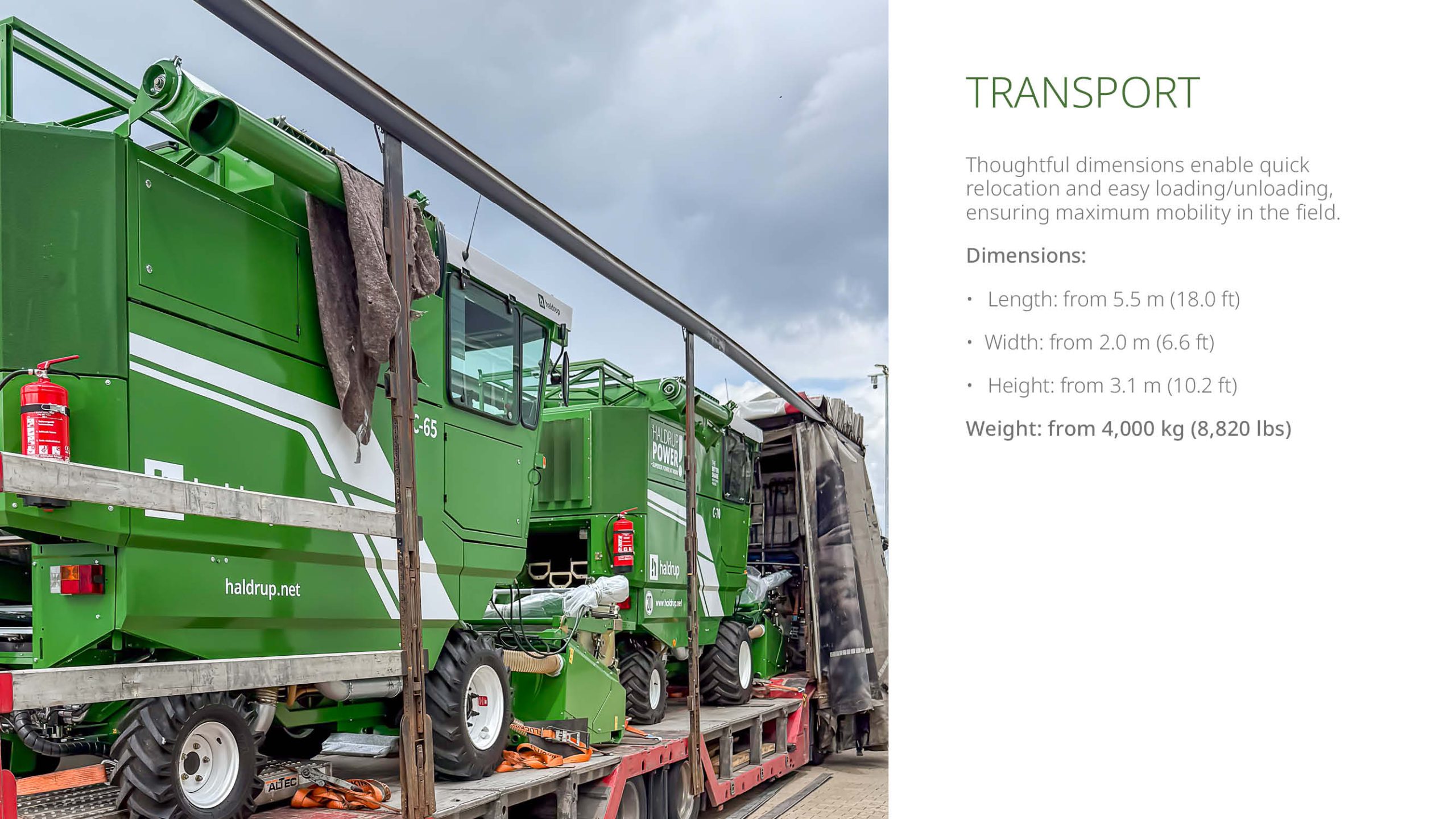

Dimensions: length – width – height	from 5500 mm – from 2000 mm – from 3000 mm
Weight	from 3600 kg

For further information, please refer to the product brochure in the adjacent link. If you have any further questions, please do not hesitate to contact us. Simply use our contact form.
