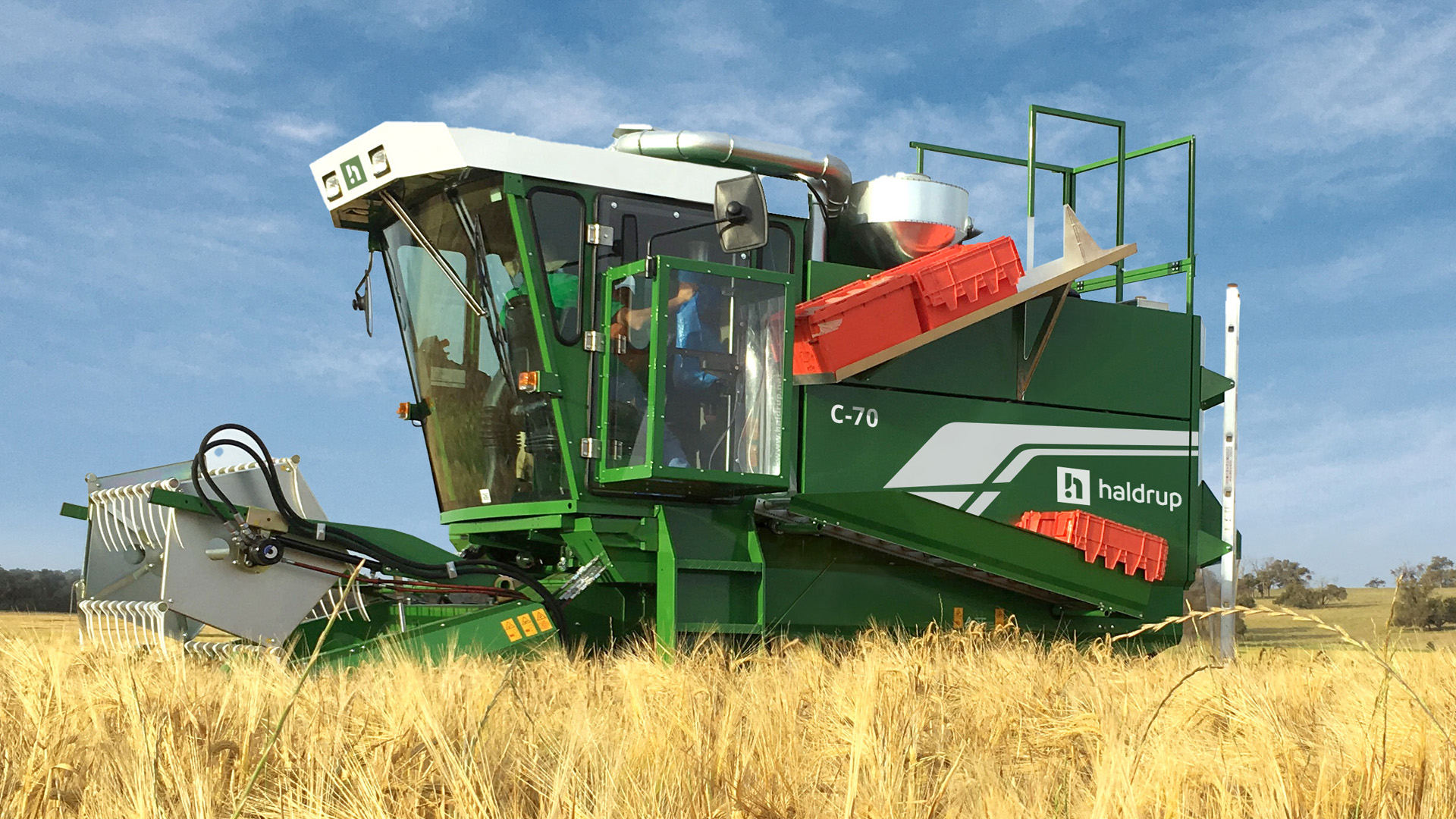

HALDRUP C-70

The new HALDRUP C-70, adds another plot combine to our product range.

HALDRUP C-70 is designed for the most difficult threshing conditions. It is equipped with a robust frame, large wheels, efficient pneumatic grain transport and 3 powerful shaker racks.

haldrup_c-70_overview GRAIN TANKCUTTING TABLE SAMPLING & BAGGING CABIN AIR INJECTION SYSTEM ENGINE TRANSPORT TRESHING & CLEANING TRACTION         FEEDERHOUSE

C-70

C-70 Specifications

Cabin for 2 persons with air-condition
Engine Deutz Diesel, water cooled, 55 kw, 75 HP
Fuel tank 90 l
Drive hydrostatic transmission, 0-20 km/h
Steering hydraulic; steering wheel adjustable in height and reclining
Tyres (front)
15.0/55-17
Tyres (rear) 23 x 8.50-12 or
11.0/65-12
Track width from 1450 mm
Threshing drum speed: 350 – 1800 Rpm; variable with variator
diameter: 350 mm
number of rasp bars: 6
Dimensions: length – width – height from 5500 mm – from 2000 mm – from 3000 mm
Weight from 3600 kg

You can find all other details in the brochure. Do you have any further questions? Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can also reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0
