HALDRUP C-85

The HALDRUP C-85 is a reliable plot combine that has been delivering high productivity and throughput to its owners for over 20 years. It can be used universally in all types of crops. The robustly developed machine makes it possible to ensure high harvesting performance as well as high purity levels even under difficult conditions.

C-85

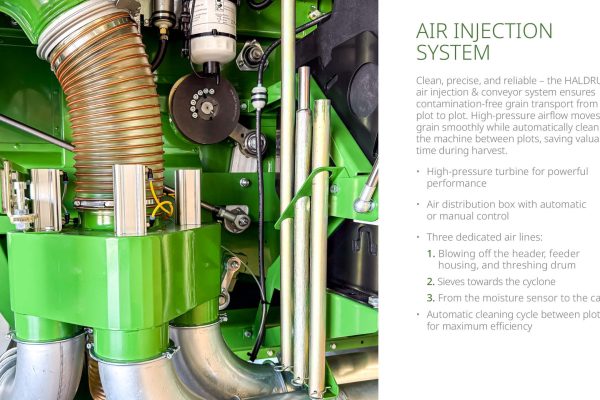

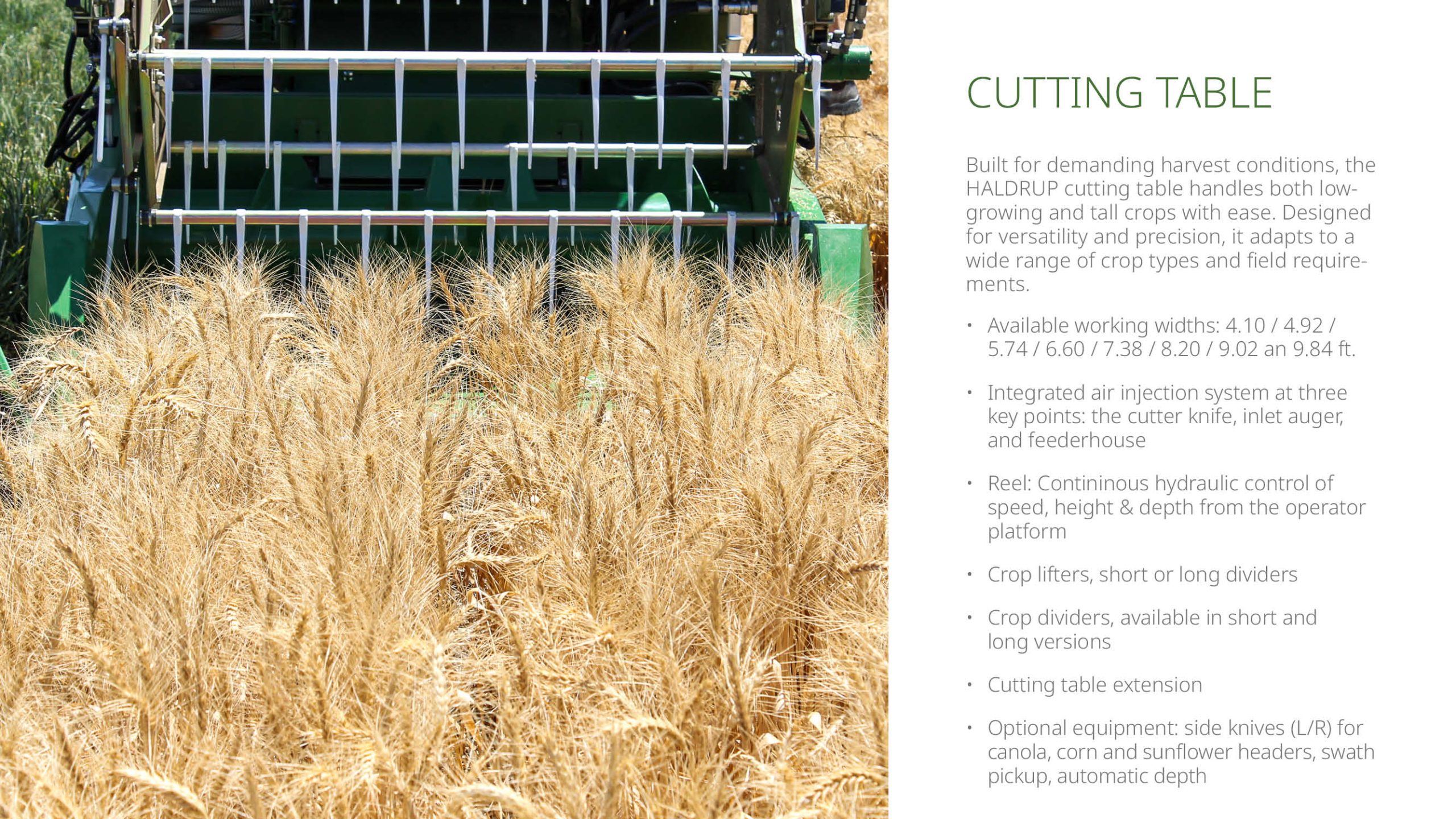

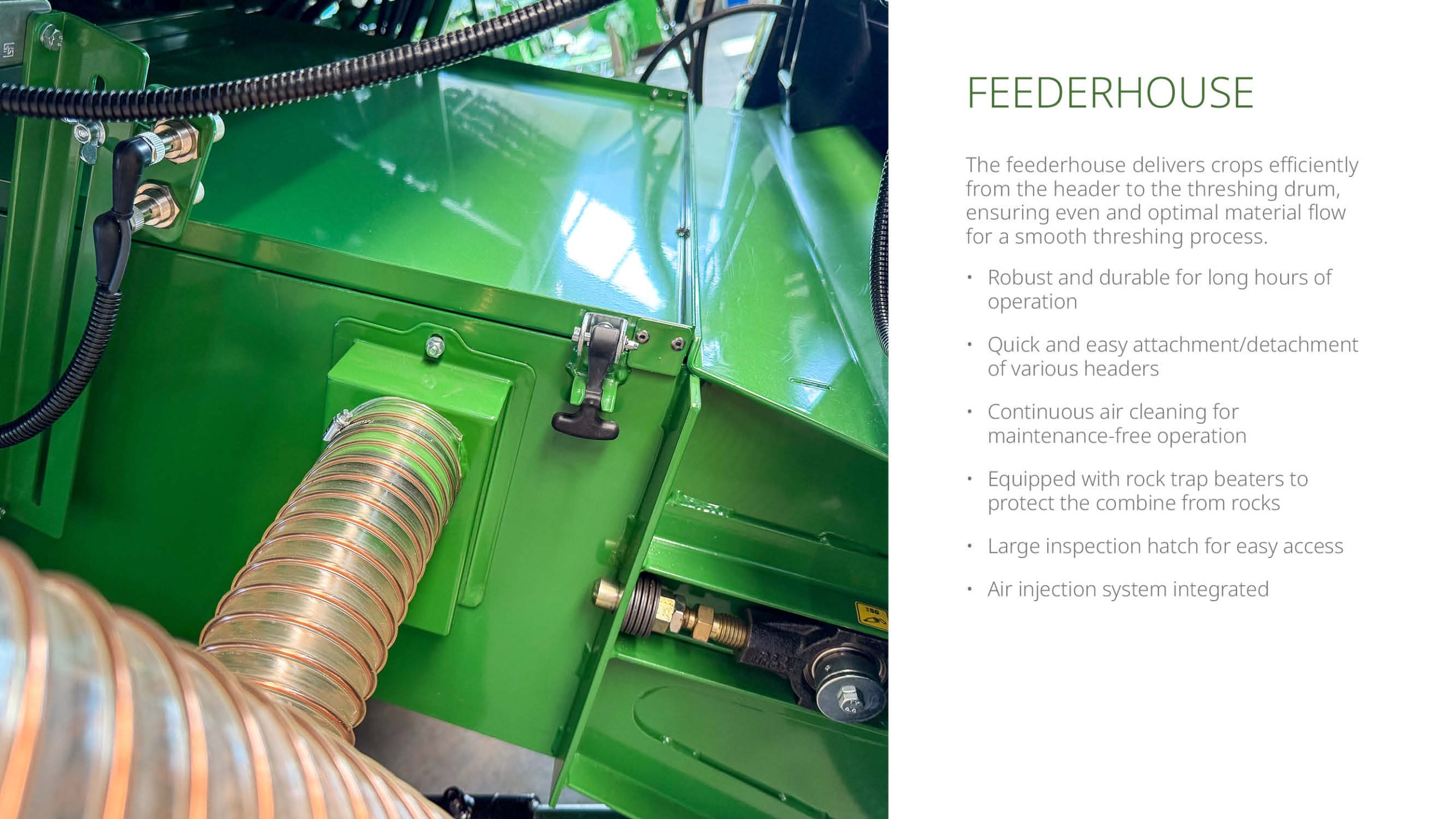

GRAIN TANKCUTTING TABLE SAMPLING & BAGGING CABIN AIR INJECTION SYSTEM ENGINE TRANSPORT THRESHING & CLEANING TRACTION              FEEDERHOUSE

C-85 Specifications

Cabin for 2 persons with air-condition
Engine DEUTZ diesel, water cooled, 80 KW, 108 HP
Fuel tank
200 l
Drive hydrostatic transmission; 0 – 20 km/h
Steering
hydraulic; steering wheel adjustable in height and reclining
Tyres (front)
335/80 R18 or
405/70 R20 or
440/65 R24
Tyres (rear) 23 x 8.50-12 8PR or
11.0/65-12 8PR or
10.0/75 -15.3
Track width
1415 mm

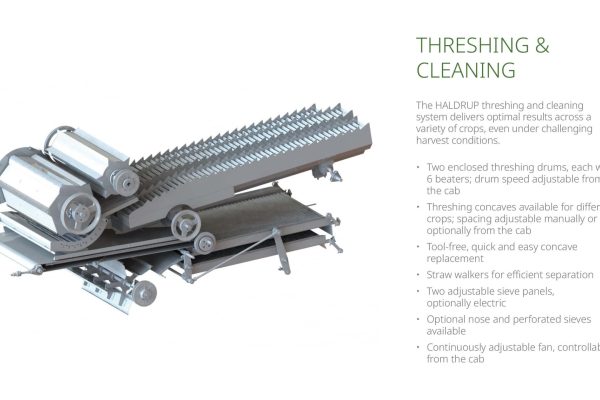

Threshing drum speed: 450 – 1800 Rpm
inlet width: 450 mm
number of rasp bars: 6

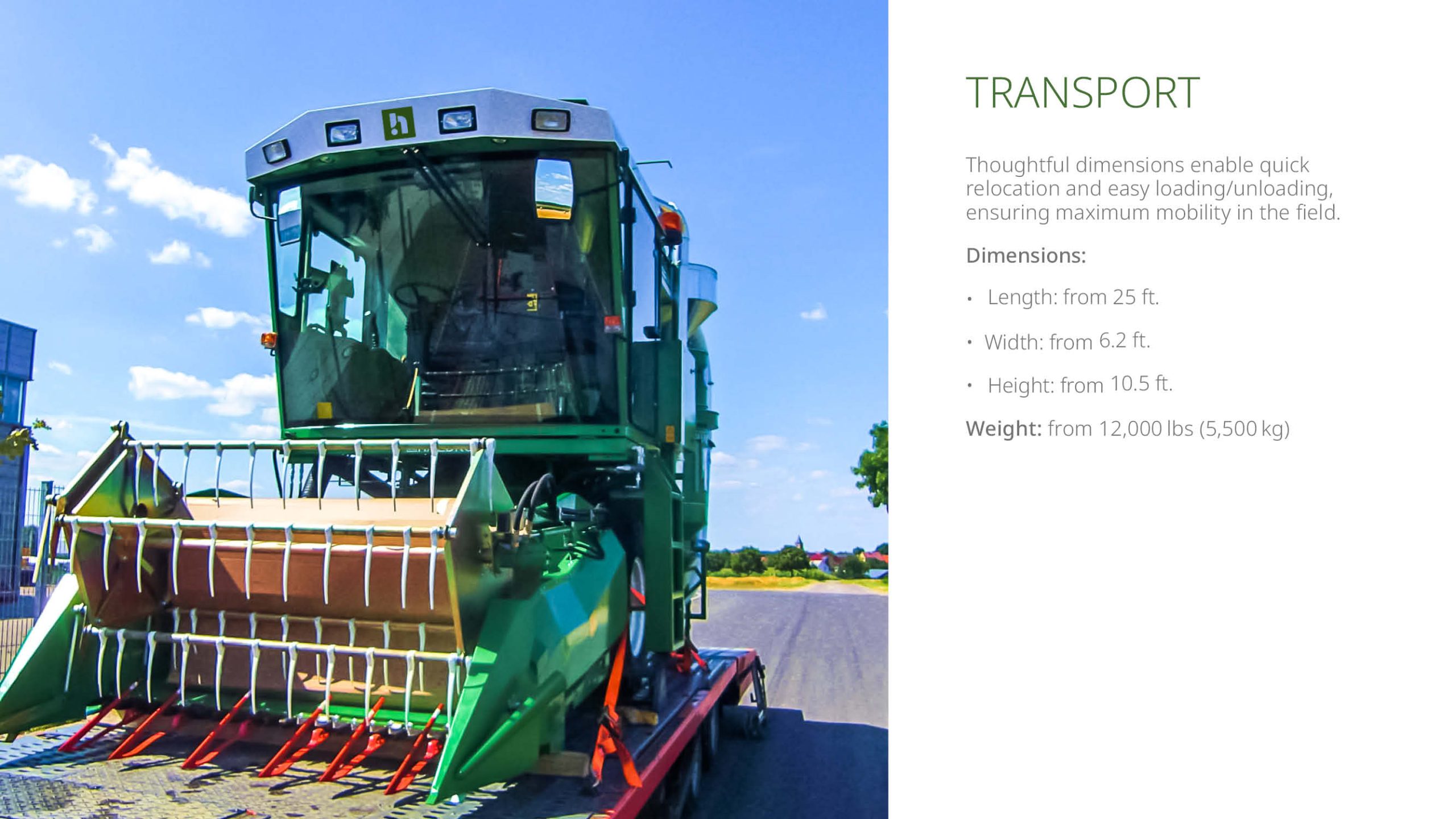

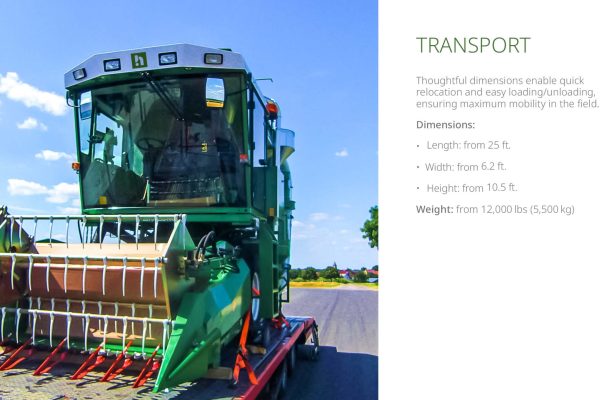

Dimensions: Length x width x height from 7600 mm x 2360 mm x 3100 mm
Weight
from 5. 500 kg

For further information, please refer to the product brochure in the adjacent link. If you have any further questions, please do not hesitate to contact us. Simply use our contact form.

Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0
