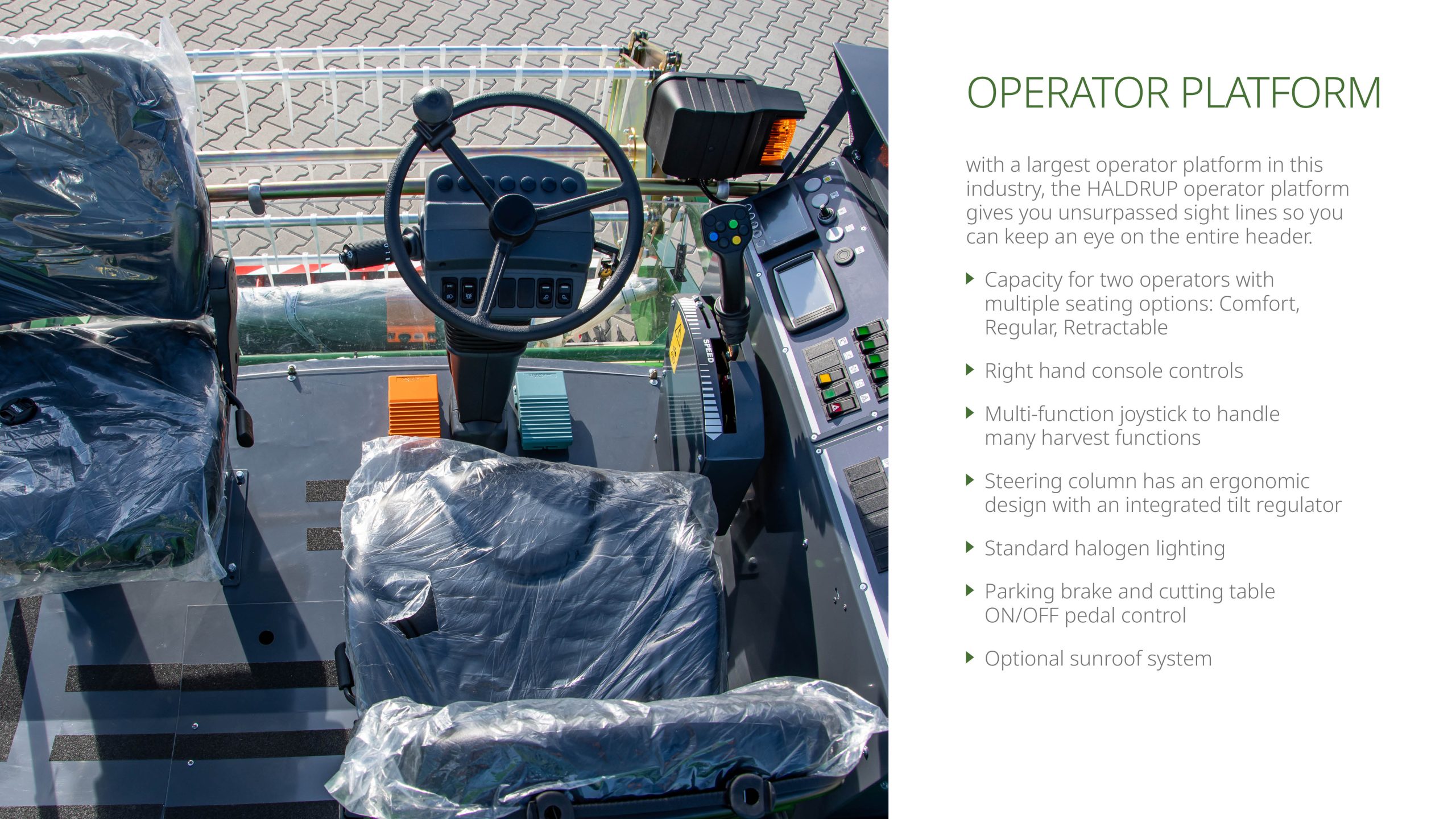

The HALDRUP C-60 is a powerful and robust plot combine with a spacious operator platform. This ensures direct access to the inclined conveyor chute, threshing drum and threshing concave for quick cleaning. As an alternative to the belt table, a cutting unit with air cleaning can also be selected.

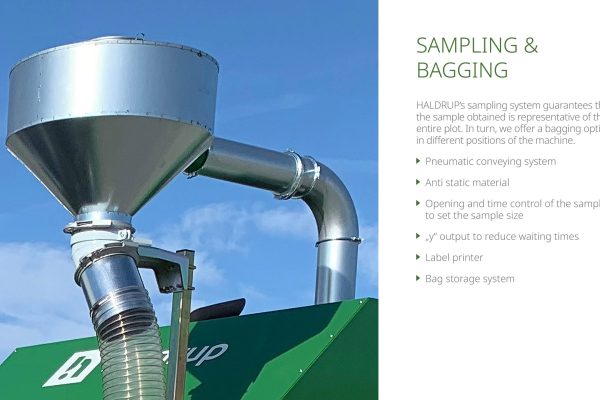

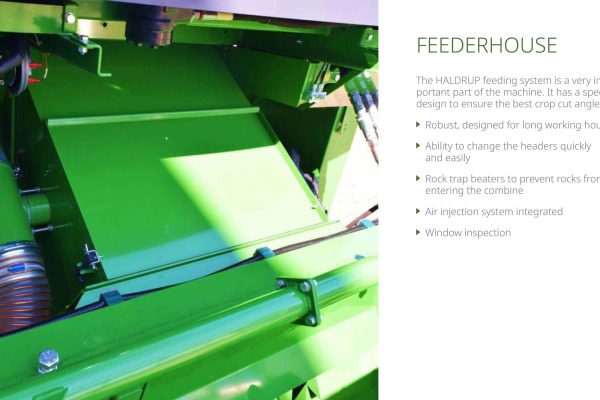

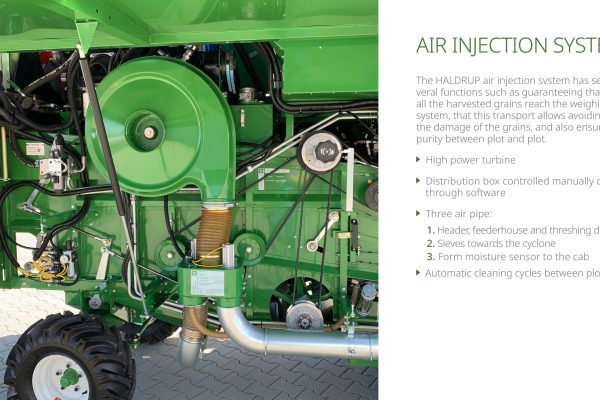

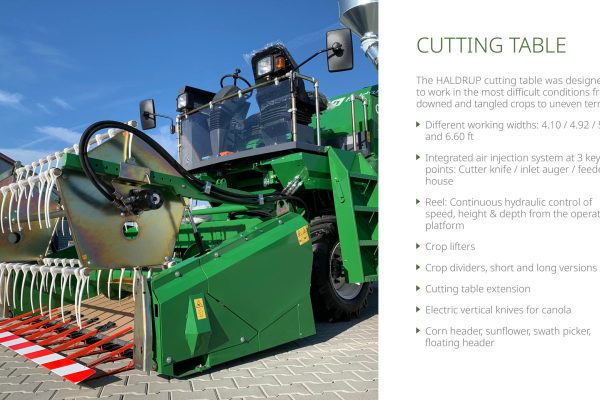

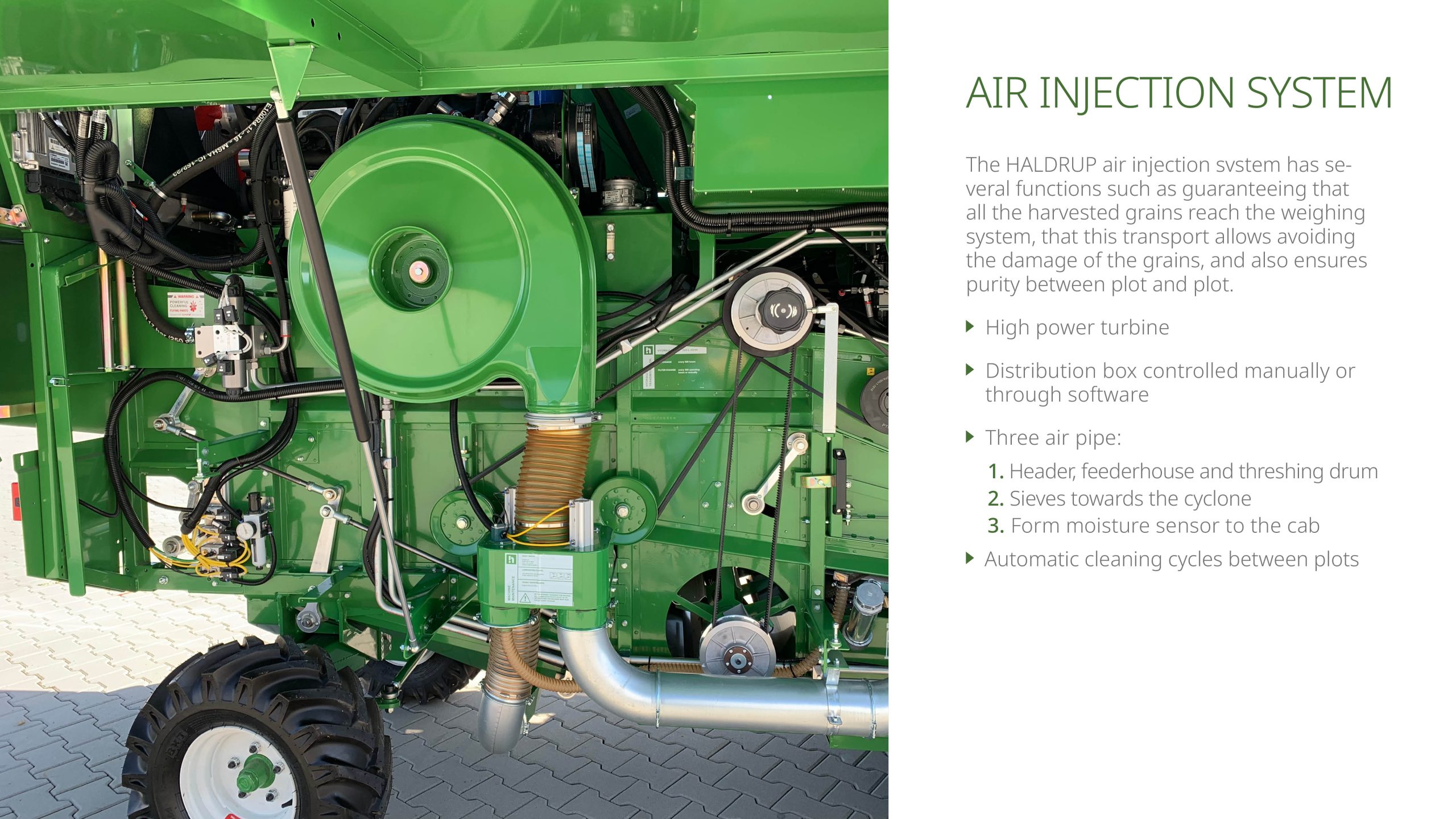

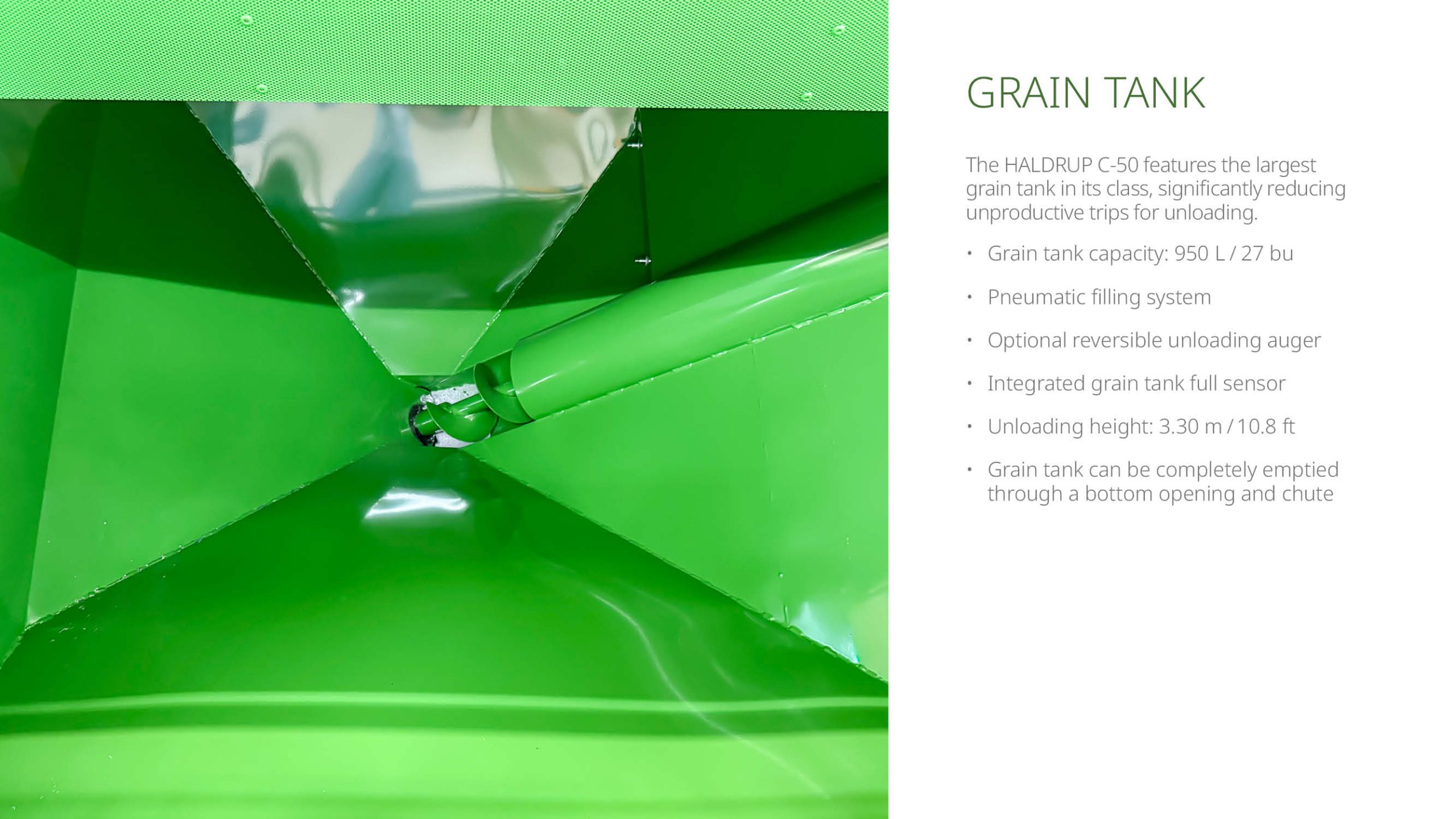

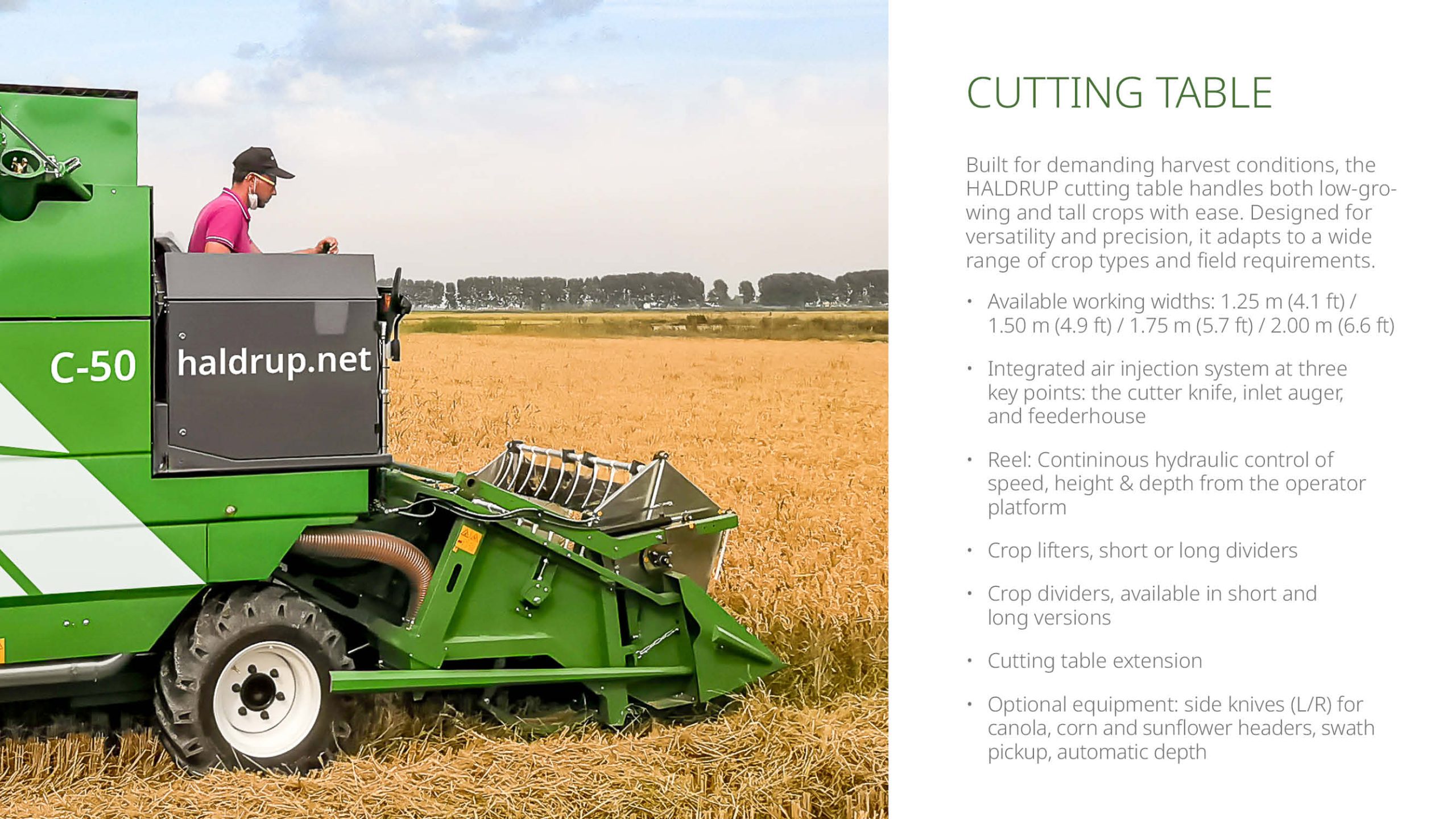

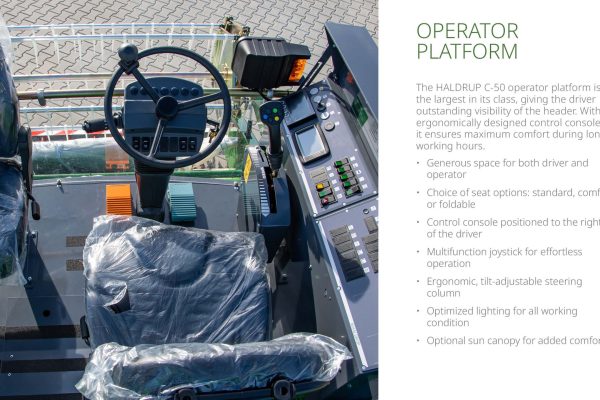

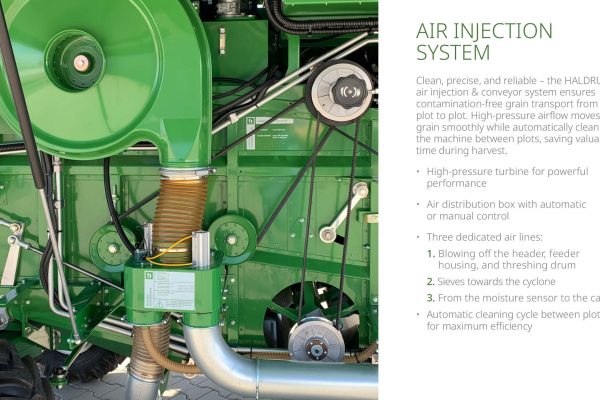

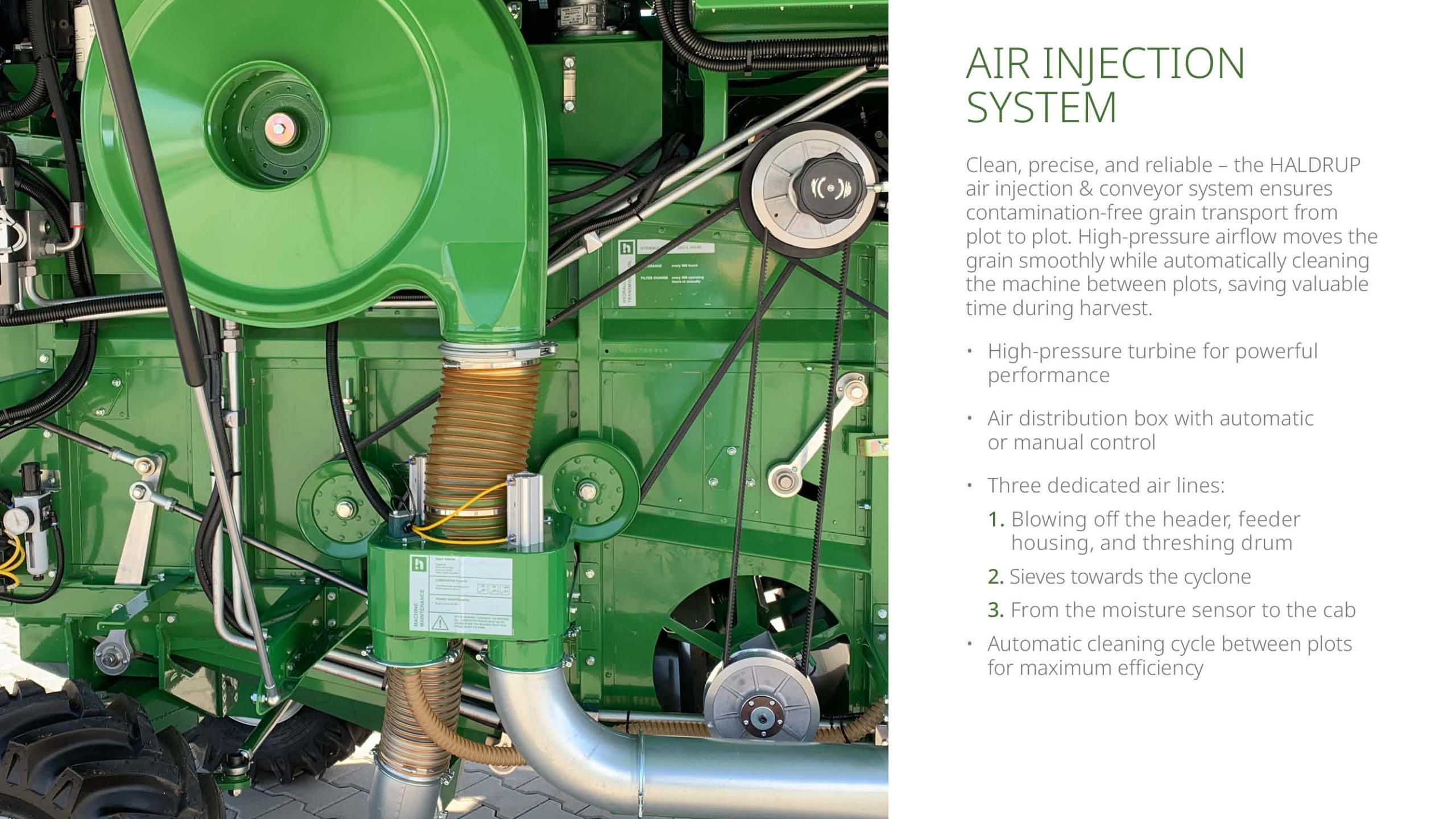

GRAIN TANK CUTTING TABLE SAMPLING & BAGGING OPERATOR PLATFORM AIR INJECTION SYSTEM ENGINE TRESHING & CLEANING TRACTION FEEDERHOUSE
C-60
C-60 Specifications

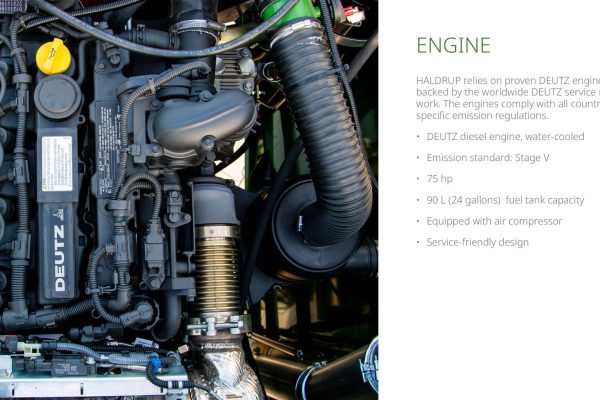

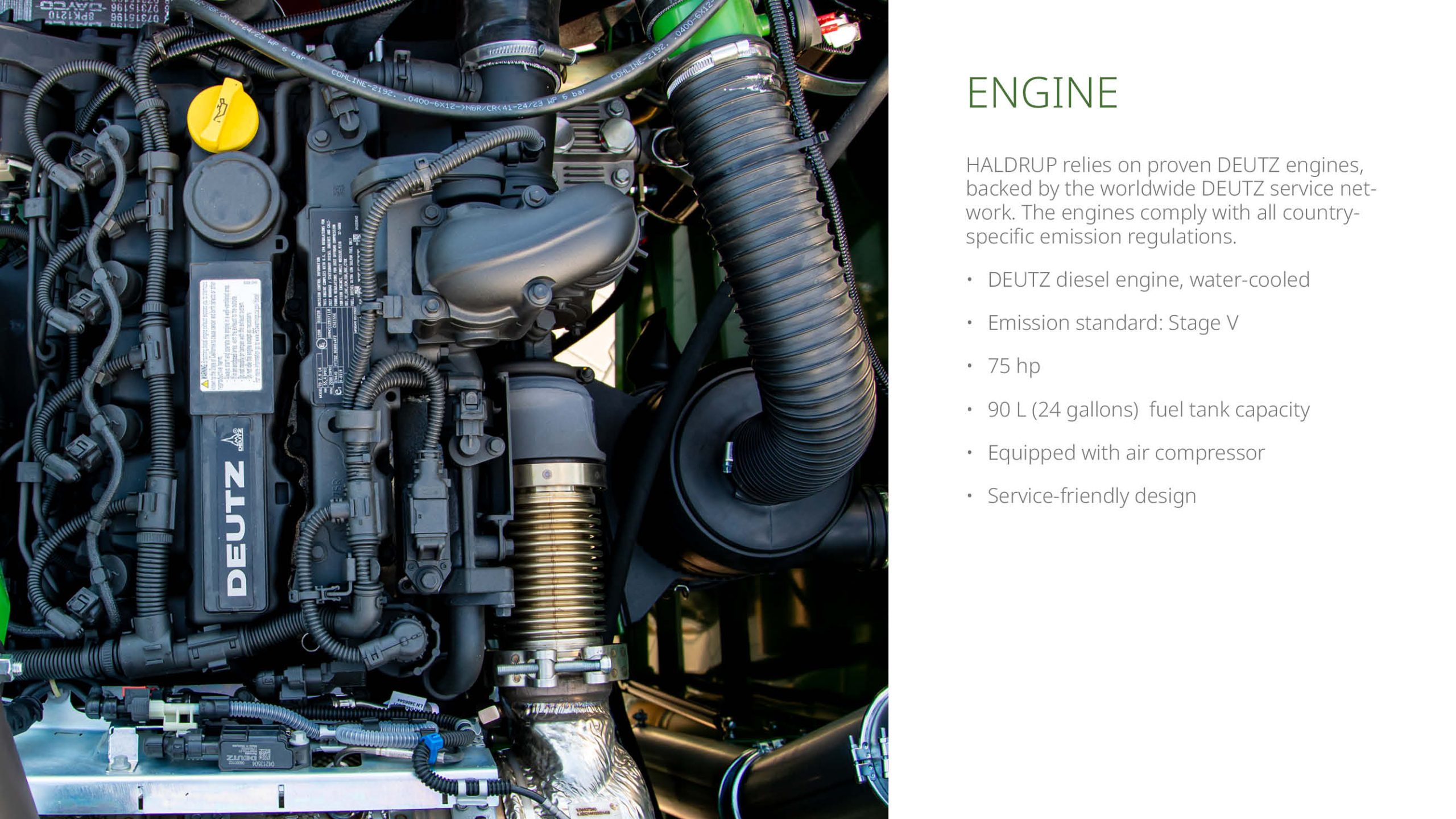

Engine
Deutz Diesel, water cooled, 55 kw/75 HP
Fuel tank
90 l

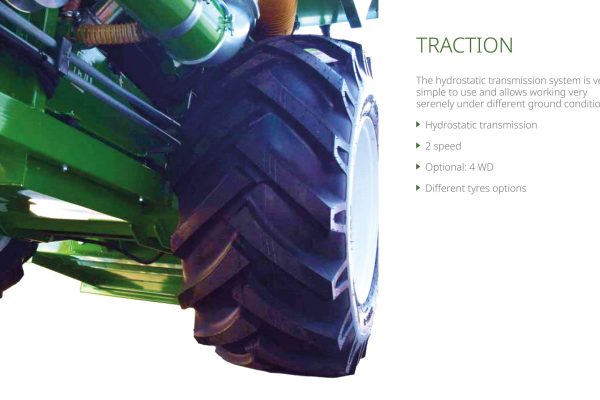

Drive
Hydrostatic transmission, 0-20 km/h
Steering
Hydraulic, steering wheel adjustable in height and reclining
Tyres (front)
15.0/55-17
Tyres (rear)
23 x 8.50-12 or
11.0/65-12
Track width
From 1450 mm

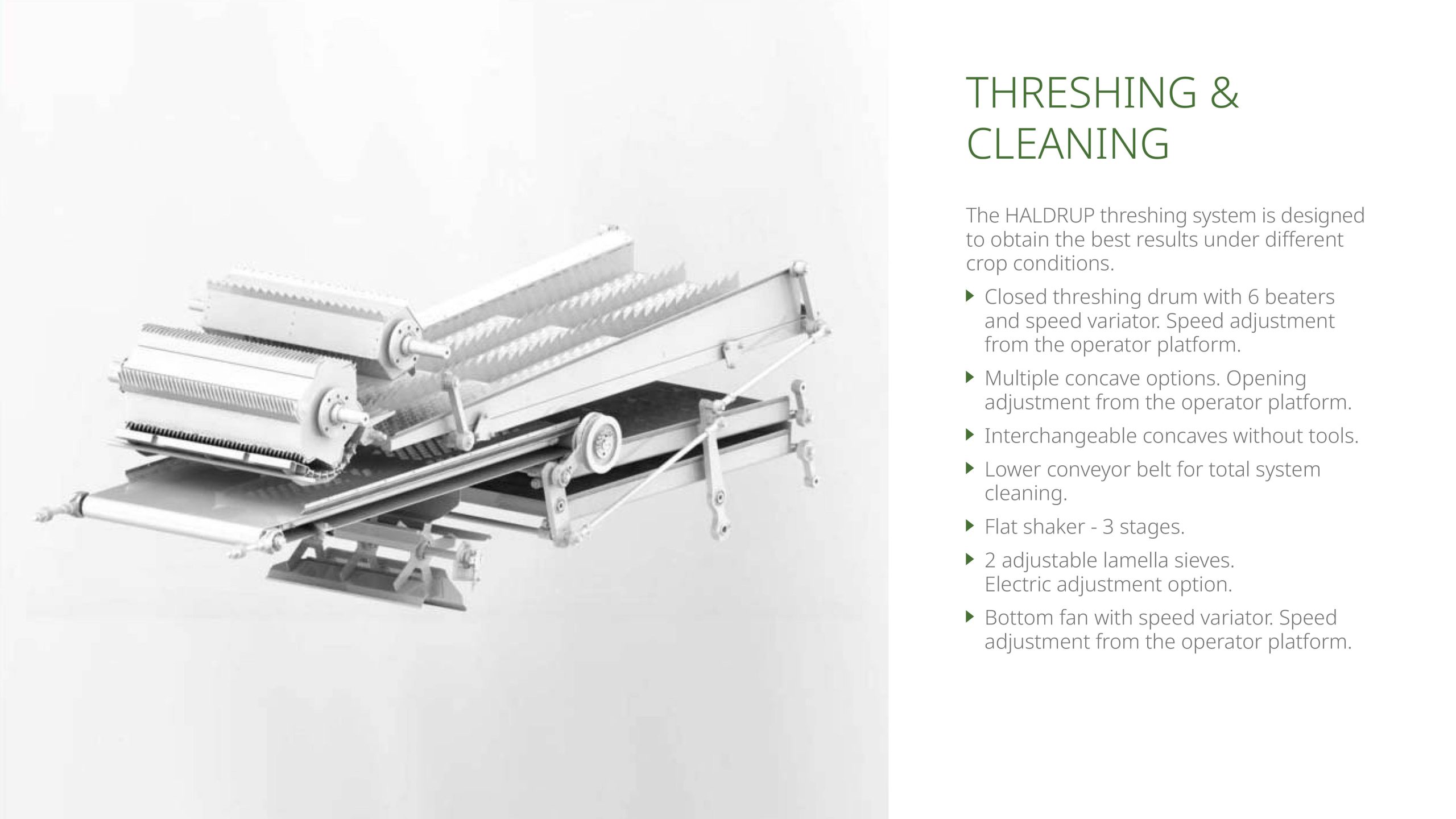

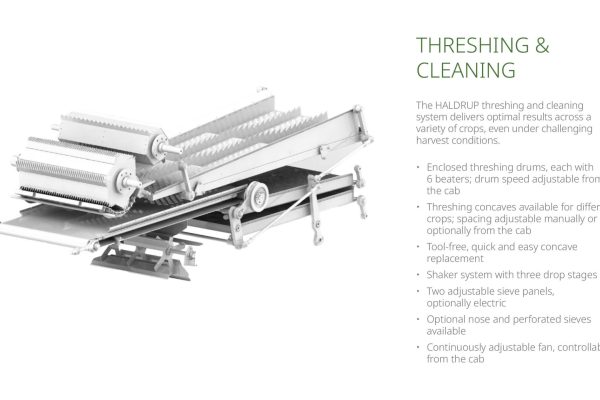

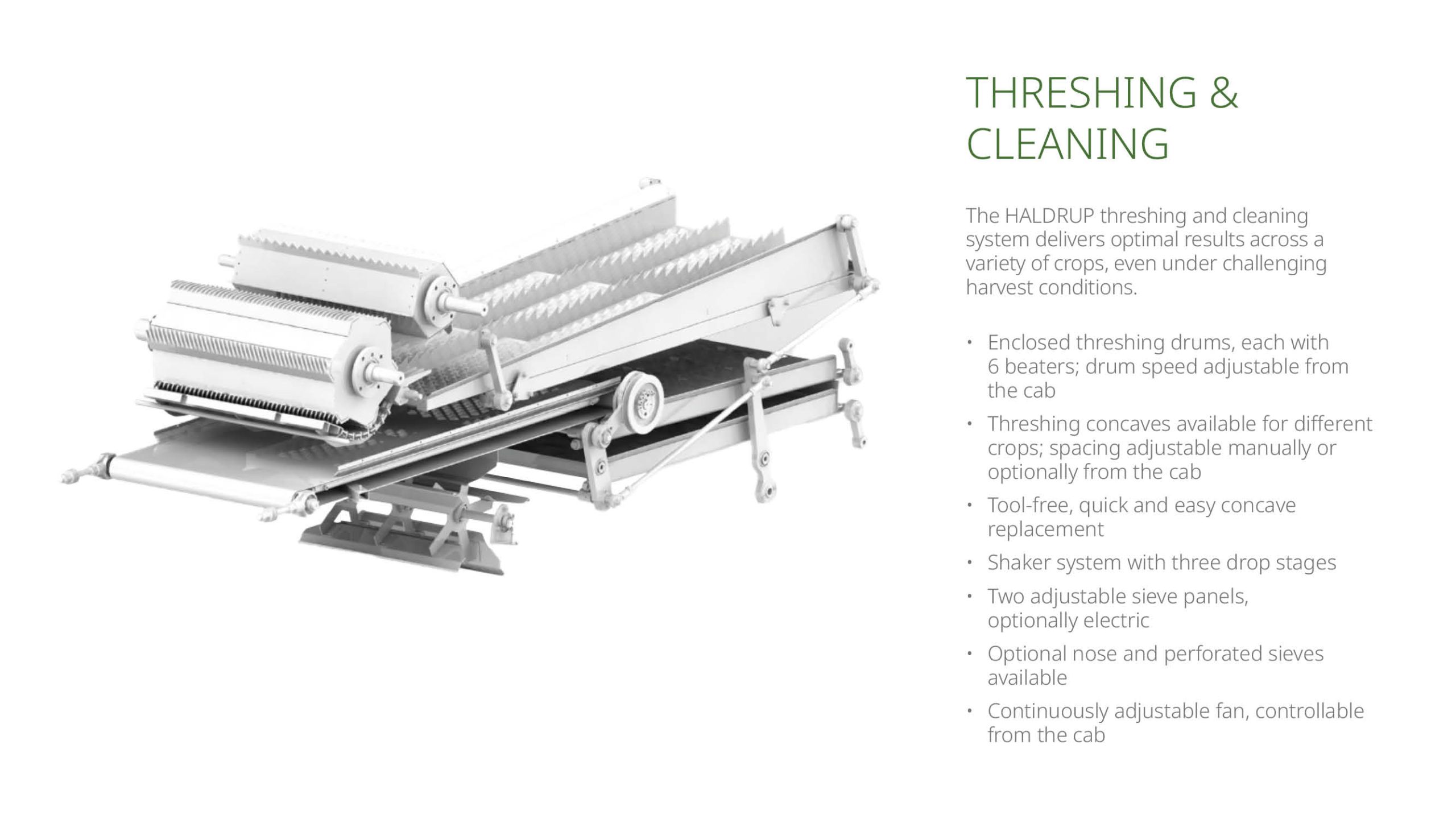

Threshing drum
Speed: 350 – 1800 Rpm; variable with variator
Diameter: 350 mm
Number of rasp bars: 6

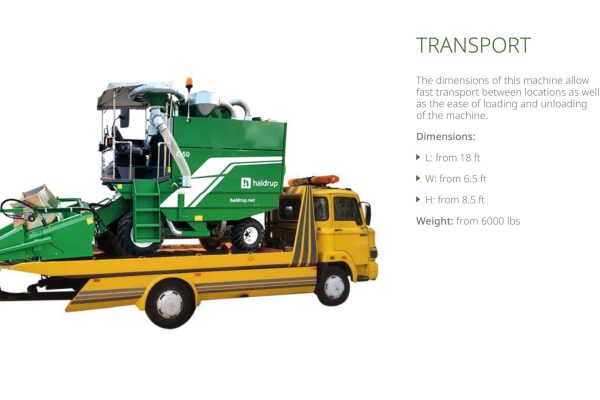

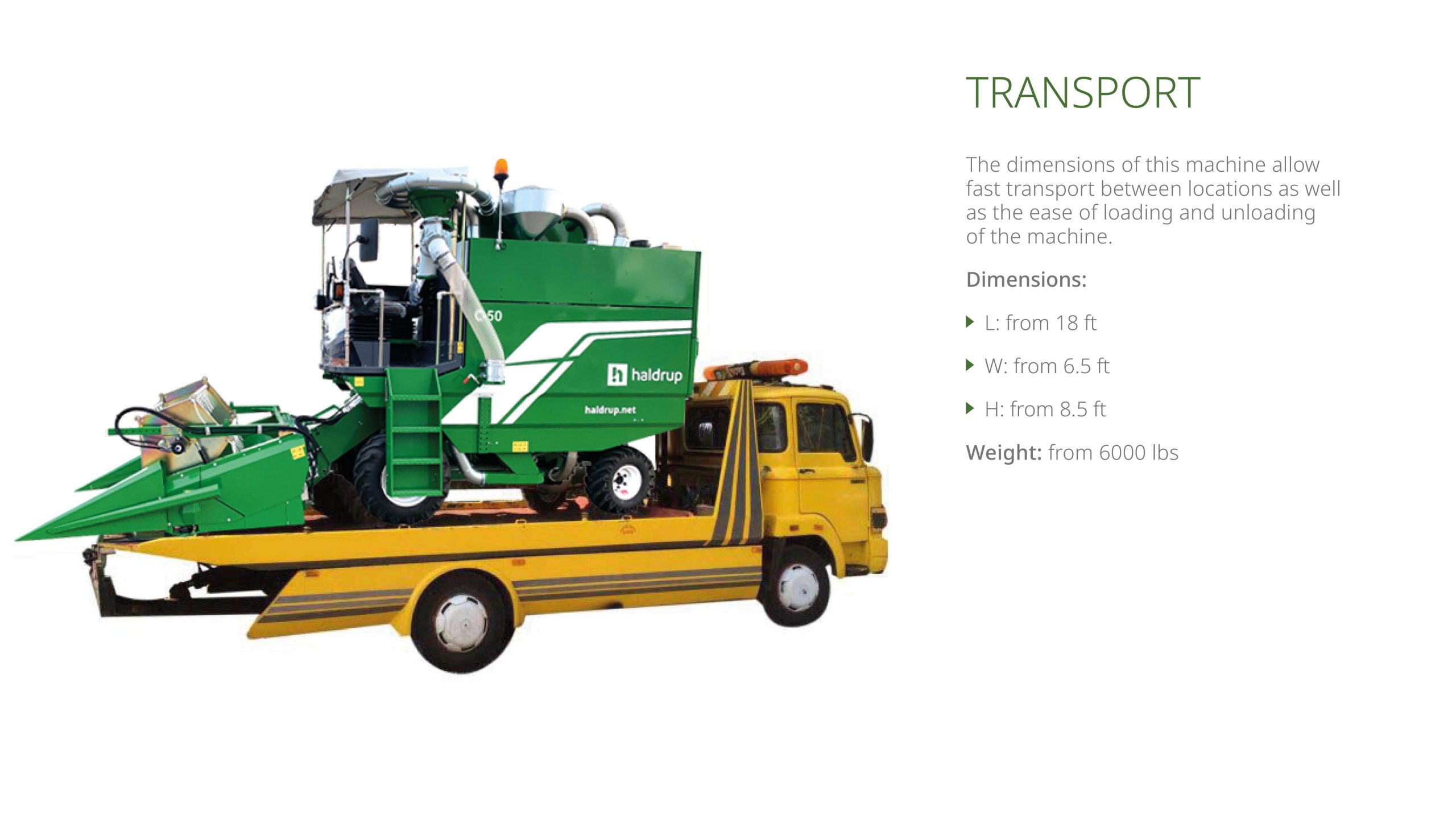

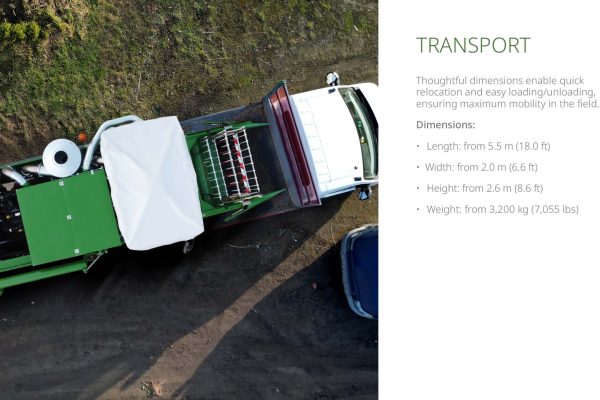

Dimensions: length – width – height
From 5100 mm – from 1700 mm – from 2600 mm
Weight
From 2700 kg
You can find all other details in the brochure. Do you have any further questions? Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can also reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0
