The HALDRUP F-55 green forage harvester is one of the bestselling green forage plot harvesters in the world. Since 1973, our green forage harvesters have been successfully harvesting plots in field research worldwide. The machine is used for whole plant harvesting of forage crops as well as medicinal and aromatic herbs.
The basic machine of the HALDRUP F-55 green forage harvester can be built up into a customised machine with many equipment options and thus meet the respective requirements.
CABIN HEADER SAMPLING & BAGGING TRANSPORT & DIMENSIONS ENGINE CHOPPER TRACTION WEIGHING SYSTEM NIR TECH
F-55
F-55 Specifications
Engine
DEUTZ diesel industrial engine, Type TCD 2.9 Turbo, 2.9 ltr., turbo motor, 55 kW/75 HP, 24 VDC with rotating air-intake
Transmission engine
2 pcs. POCLAIN MSE03-02 wheel drive
Diesel tank
80 l
Hydraulic tank
48 l
Speed
0 – 20 km/h
Brakes
Negative brakes
Tyres
front: 26 x 12.00 tractor or grass profile
rear: 11.0/65-12 tractor profile, optional 26 x 12.00
Cutting table width
1250 or 1510 mm
Cutting table reel
0-50 rpm, hydraulically with variable speed control, 5 reel bars, diameter 1000 mm
Cutting table double knives
BIDUX ESM, variable speed, 800-1400 cuts/min
Sample chopper width
140 mm or 270 mm

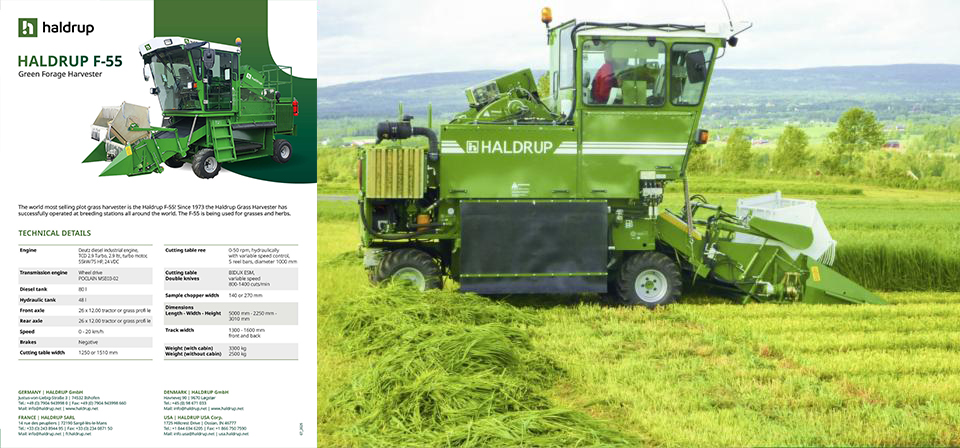

You can find all other details in the brochure. Do you have any further questions? Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can also reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0
Feel free to contact us via our chat function during service hours and get in touch directly with one of our experts. Alternatively, you can reach us via the contact form below or by phone at: +49 (0) 7904 94 3998 0
