HALDRUP SB-25

Seeding equipment and field trials demand the highest precision. The HALDRUP SB-25 was specifically developed for rigorous agricultural research trials and thoroughly tested in collaboration with leading international field trial stations. This band-type seeder combines robust construction, intuitive operation, and state-of-the-art technology to ensure uniform and reproducible seed placement. With excellent visibility during the seeding process, you maintain full control over your trials and achieve precise, comparable results.

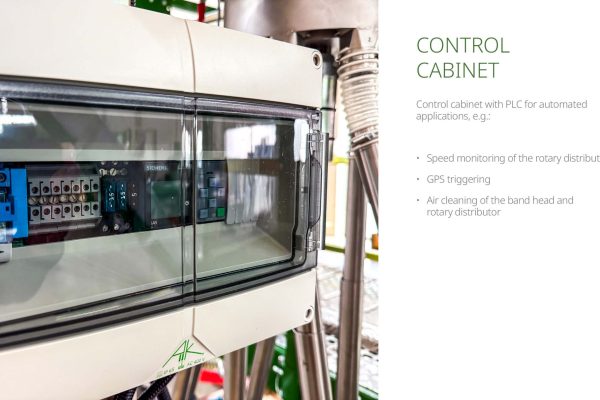

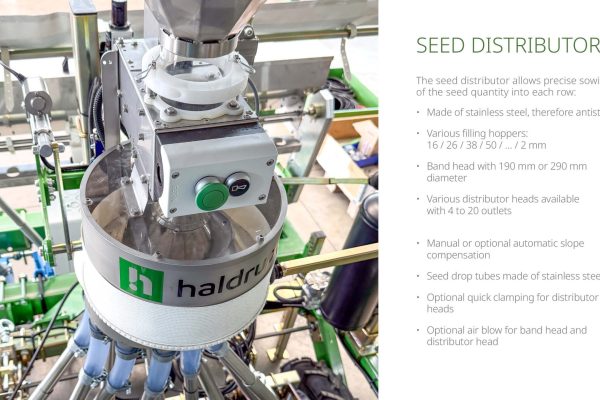

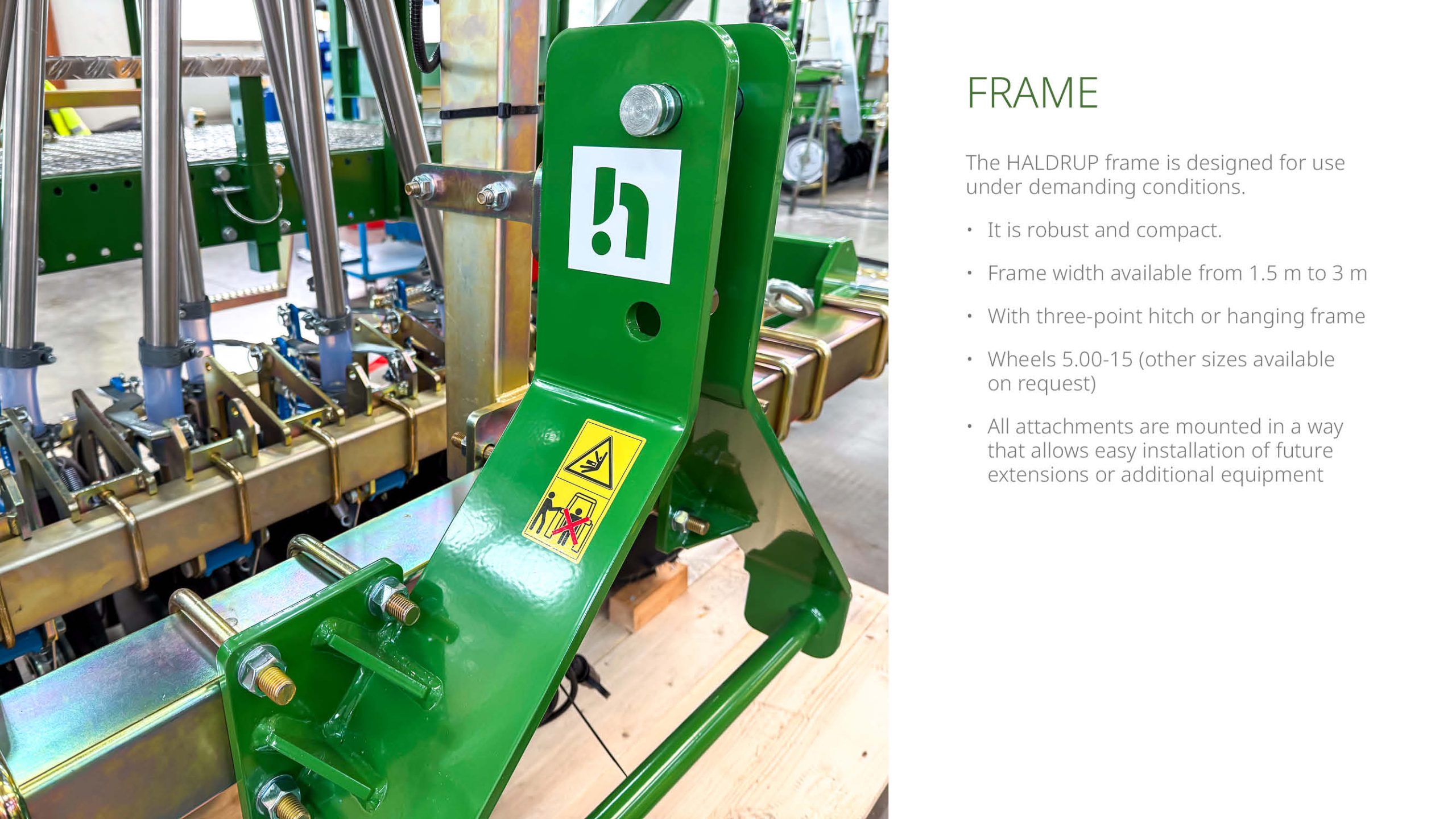

ELECTRIC BOX GROUND WHEEL OPERATOR PLATFORMOPERATOR TERMINAL SEED DISTRIBUTOR GEARBOX FRAMECOULTER

SB-25

SB-25 Specifications

Attachment	3-point hitch, tool carrier
Number of rows	from 2 up to 20
Row distance	from 9 cm
Track width	from 1250 mm
Tyres	5.00 – 15 or on request
Belt cones	190 mm / 290 mm diameter, 2 belt cones for two plots or additional fertilizer
Continuos seeding	appr. 20 kg
Micro granulate	Dosage in the row or between the row
Coulter System
Shoe coulter	Amazone
Single disc coulter	HALDRUP IS-COULTER, Amazone RoTec
Double disc coulter	Lemken, Horsch

For further information, please refer to the product brochure in the adjacent link. If you have any further questions, please do not hesitate to contact us. Simply use our contact form.
